產品名稱：
|
手動真空球閥
|
產品型號：
|
GU型
|
|
驅動方式：
|
手動
|
連接形式：
|
法蘭
|
|
適用領域：
|
真空、乳制品、酒業、生物工程
|
密封材料：
|
橡膠
|
|
壓力范圍：
|
0.6×106～1.3×10-4Pa
|
公稱通徑：
|
DN50-DN800
|
|
常用材質：
|
碳鋼、不銹鋼
|
技術咨詢：
|
021-31007323
|

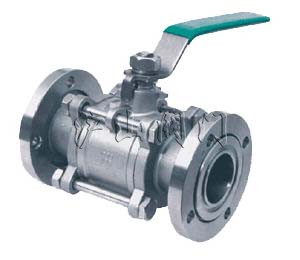

GU型－高真空球閥
GU型手動真空球閥用于接通或切斷真空(壓力)系統管路中的介質流。氣動真空球閥應用于真空、乳制品、酒業、生物工程、
食品、制藥、飲料、化妝品及化工領域。
GU
High Vacuum(Pressure)Ball Valve
GU high vacuum(pressure)ball valve is used to put through or cut off the medium flow in vacuum(pressure)pipeline
in the areas of vacuum, dairy products, breweries, biological engineering, foodstuff, pharmaceuticals, drinks, cosmetics
and chemicals.
主要技術性能
Main Technical Performance
|
閥門漏率：Valve Leak Rate
|
≤1.3×10-4Pa.L/S.
|
|
適用溫度：Applicable Temperature
|
-30～+150℃
-30～+150℃(PPL密封)
|
|
適用范圍：Appy Range
|
|
|
連接型式 Loose Flange
|
使用壓力范圍(Pa)
|
|
活套法蘭(GB6070、JB919)
|
0.6×106～1.3×10-4
|
|
焊接法蘭(GB6070、JB919)
|
1.6×106～1.3×10-4
|
|
快卸法蘭(GB4982)
|
0.1×106～1.3×10-4
|
|
螺紋連接 Threaded Connection
|
1.6×106～1.3×10-4
|
主要零件材料
Materials of Main Parts
閥體、閥蓋、閥桿：不銹鋼
密封件：四氟乙烯、丁腈橡膠、氟橡膠、PPL。
Body, disc and stem: stainless steel.
Sealing element: PTFE, NBR, Viton, PPL.
CONSTRUCTION FIGHTS (mm)
外形及連接尺寸(mm)(JB919)
Overall and Connection Dimensions(mm)
|
Model
型號
|
DN
|
D
|
Do
|
H
|
E
|
L
|
n-φc
|
|
GU-10(F)
|
10
|
55
|
40
|
52
|
105
|
84
|
4-φ6.6
|
|
GU-16(F)
|
16
|
60
|
45
|
64
|
130
|
84
|
4-φ6.6
|
|
GU-25(F)
|
25
|
70
|
55
|
83
|
165
|
114
|
4-φ6.6
|
|
GU-32(F)
|
32
|
90
|
70
|
89
|
165
|
140
|
4-φ9
|
|
GU-40(F)
|
40
|
100
|
80
|
100
|
190
|
160
|
4-φ9
|
|
GU-50(F)
|
50
|
110
|
90
|
125
|
190
|
170
|
4-φ9
|
|
GU-63(F)
|
63
|
130
|
110
|
150
|
250
|
195
|
4-φ9
|
|
GU-80(F)
|
80
|
145
|
125
|
161
|
250
|
220
|
8-φ9
|
|
GU-100(F)
|
100
|
165
|
145
|
180
|
280
|
280
|
8-φ9
|
快卸法蘭連接(GB4982)(圖三)
|
Model
型號
|
DN
|
D1
|
D
|
H
|
E
|
L
|
|
GU-10(KF)
|
10
|
12.2
|
30
|
52
|
105
|
84
|
|
GU-16(KF)
|
16
|
17.2
|
30
|
64
|
130
|
84
|
|
GU-25(KF)
|
25
|
26.2
|
40
|
83
|
165
|
114
|
|
GU-32(KF)
|
32
|
34.2
|
55
|
89
|
165
|
140
|
|
GU-40(KF)
|
40
|
41.2
|
55
|
100
|
190
|
160
|
|
GU-50(KF)
|
50
|
52.2
|
75
|
125
|
190
|
170
|
